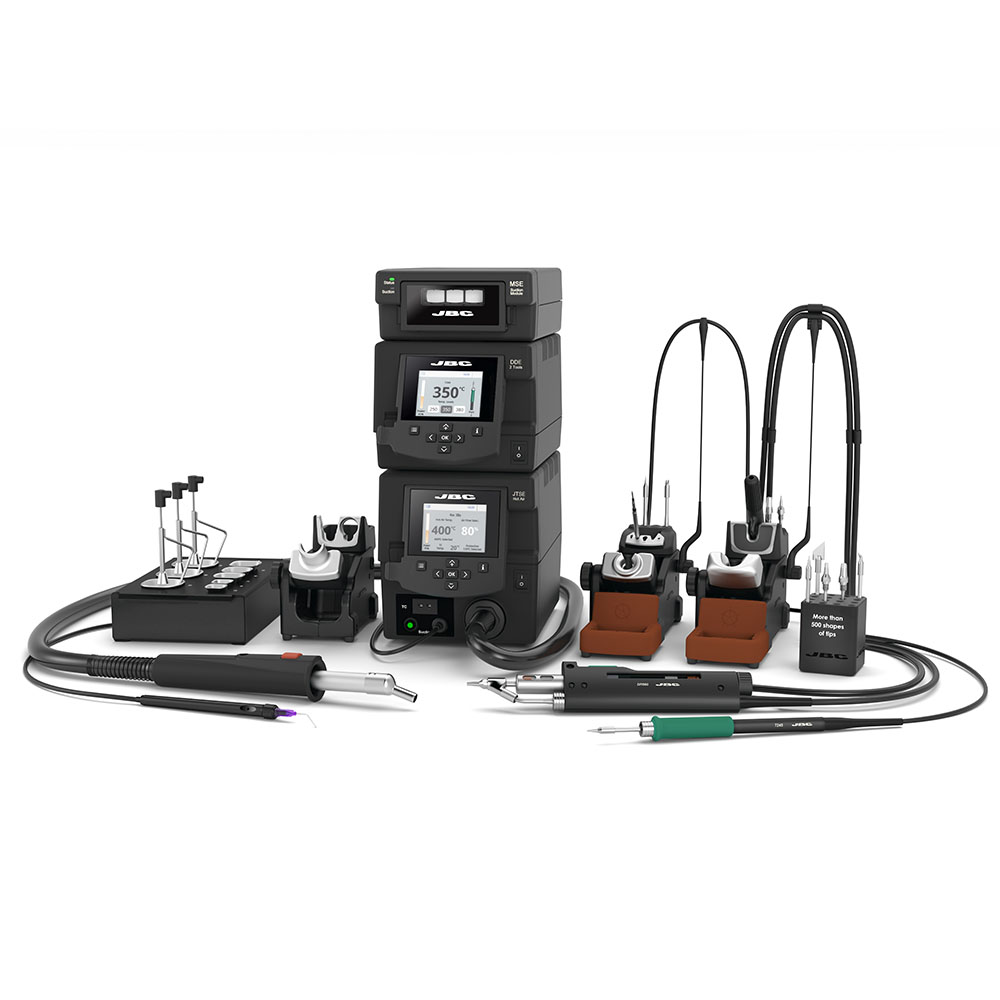

产品构成
工具
吸锡手柄 (配备C560003吸锡嘴) , 通用型手柄 (不含烙铁头)T245-A , 热风软管套装 (不含热风嘴)焊台
烙铁头座 , T210 & T245 手柄专用支架 AD-SF , DR560 吸锡手柄专用支架 DR-SF , JTT 热风软管套装专用支架 JT-SF附件
取放手柄 (包含0861660折型针, 0901546直型针) , 保护罩和吸杆专用支架技术参数
AC适配器:
Graphics and profiles
防静电:
Meet ANSI/ESD S20.20-2021
FAE / Robot connector:
Remote control or FAE Fume Extractor connection
JBC设定的温度曲线:
25 (up to 10 steps for each), 1 preset profile
真空:
85% / 640mmHg / 25.4inHg
温度可选范围:
90 to 450 C / 190 to 840 F
Type K thermocouple:
1 for Control & Protection
USB-B (rear):
PC communications
USB-A (front):
Firmware update
Temperature (DDE):
90 to 450 ºC
Temperature (JTSE):
150 to 450 °C
Air Flow (JTSE):
5 to 50 SLPM
Pedal (JTSE):
Tool control
Peak Power (DDE):
150 W per tool
Vacuum (JTSE):
30% / 228 mmHg
Type K thermocouple (JTSE):
1 for Control & Protection
Equipotential bonding:
Optional connection to EPA
尺寸和重量:
AUTOMATIC DIMENSIONS AND WEIGHT
Package:
700 x 410 x 390 mm / 20.20 kg.
